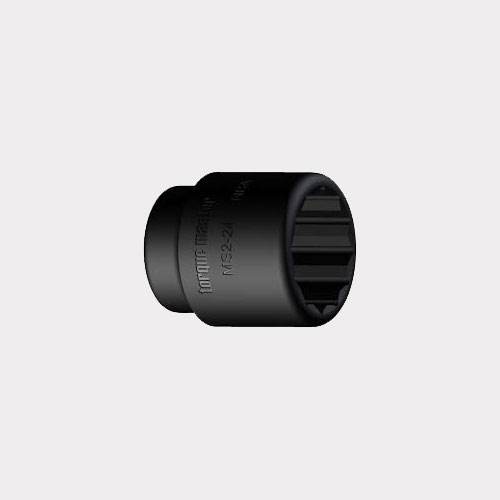

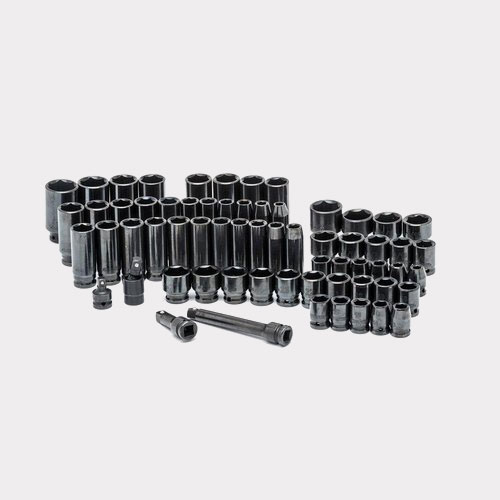

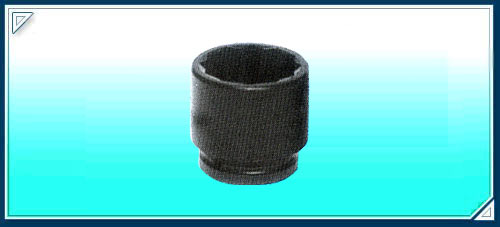

These are for hand operation only and are available in ¼" to ½" square drive covering Bolt/Nut across flat sizes 4 to 34 mm ( ¼" to 1 3/8" SAE) and equivalent British Sizes. Heavy duty sockets are available in ¾" and 1" square drives covering across flat sizes from 19 mm to 85 mm (9/16" to 3 ½" SAE) and equivalent British sizes. These heavy duty industrial sockets are designed with a positive locking for its attachment with the driving tools having spring loaded ball & button. Deep sockets are also available to accommodate long studs.
Yes!
I am interested |
|
 |

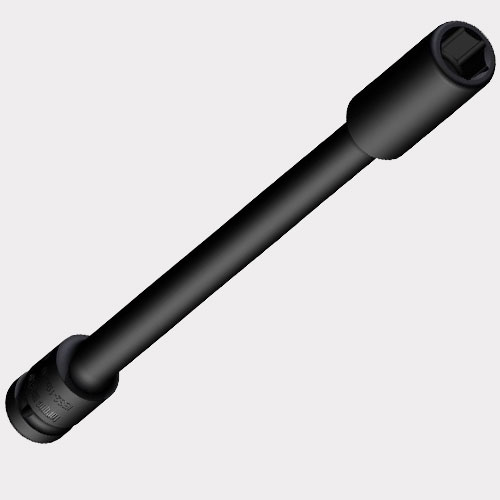

Extension Impact Sockets
|
Extension sockets are with built-in integral
extension. These are suitable for impact applications and are available
in single hex configuration in rigid as well as swivel joint design.
Industrial extension sockets are provided with locking ring and pin and
are available in various across flat sizes in 3/8" & ½"
square drives with different lengths ranging from 100 mm to 250 mm.
|
|
|
3/8" Sq. Drive Impact Extension Sockets (Metric)
| Part
No.* |
Nom.
Size A/F |
Sockets
End. Dia |
Drive
End Dia |
Broach
Depth |
Bolt
Clearance Depth |
Approx
OAL |
| IES-1-7/100 |
7 |
12.7 |
19.0 |
8.0 |
24 |
100 |
| IES-1-8/100 |
8 |
13.9 |
19.0 |
9.5 |
26 |
100 |
| IES-1-10/100 |
10 |
16.4 |
19.0 |
10.5 |
27 |
100 |
| IES-1-11/100 |
11 |
17.7 |
20.0 |
10.5 |
27 |
100 |
| IES-1-12X100 |
12 |
19.0 |
20.0 |
12.5 |
29 |
100 |
| IES-1-13/100 |
13 |
20.2 |
20.0 |
12.5 |
29 |
100 |
| IES-1-14/100 |
14 |
21.4 |
22.0 |
15.0 |
31 |
100 |
* For over all lengths 150 mm, 200 mm & 250 mm part number will be
IES1-A/F X OAL, other dimensions will be same.
1/2" Sq. Drive Impact Extension
Sockets (Metric)
| Part No.** |
Nom. Size A/F |
Sockets End. Dia |
Drive End Dia |
Broach Depth |
Bolt Clearance Depth |
Approx OAL |
| IES2-10X100 |
10 |
17.6 |
25 |
10.5 |
27 |
100 |
| IES2-11X100 |
11 |
19.0 |
25 |
10.5 |
27 |
100 |
| IES2-12X100 |
12 |
20.2 |
25 |
12.5 |
29 |
100 |
| IES2-13X100 |
13 |
21.7 |
26 |
12.5 |
29 |
100 |
| IES2-14X100 |
14 |
23.0 |
26 |
15.0 |
33 |
100 |
| IES2-17X100 |
17 |
26.7 |
26 |
17.0 |
35 |
100 |
| IES2-19X100 |
19 |
29.2 |
28 |
19.0 |
37 |
100 |
| IES2-21X100 |
21 |
31.7 |
28 |
19.0 |
37 |
100 |
| IES2-22X100 |
22 |
33.0 |
28 |
19.0 |
38 |
100 |
| IES2-23X100 |
23 |
34.2 |
30 |
22.0 |
42 |
100 |
| IES2-24X100 |
24 |
35.5 |
30 |
22.0 |
42 |
100 |
| IES2-27X100 |
27 |
39.2 |
30 |
22.0 |
42 |
100 |
** For over all lengths 150 mm, 200 mm & 250 mm part number will be
IES2-A/F X OAL, other dimensions will be same.

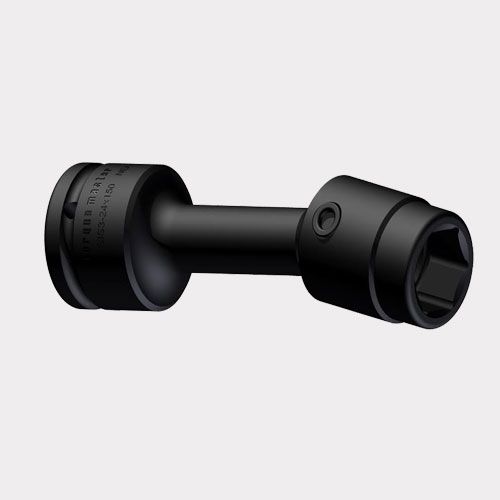

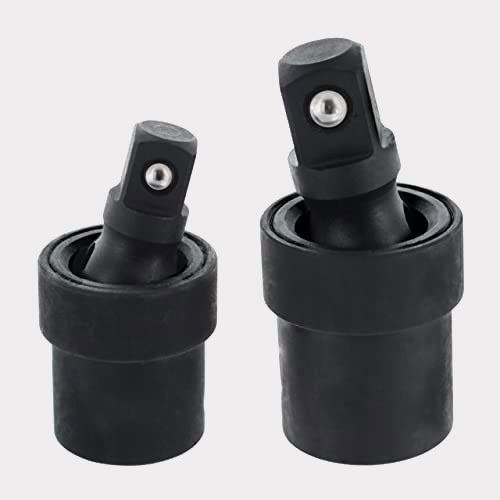

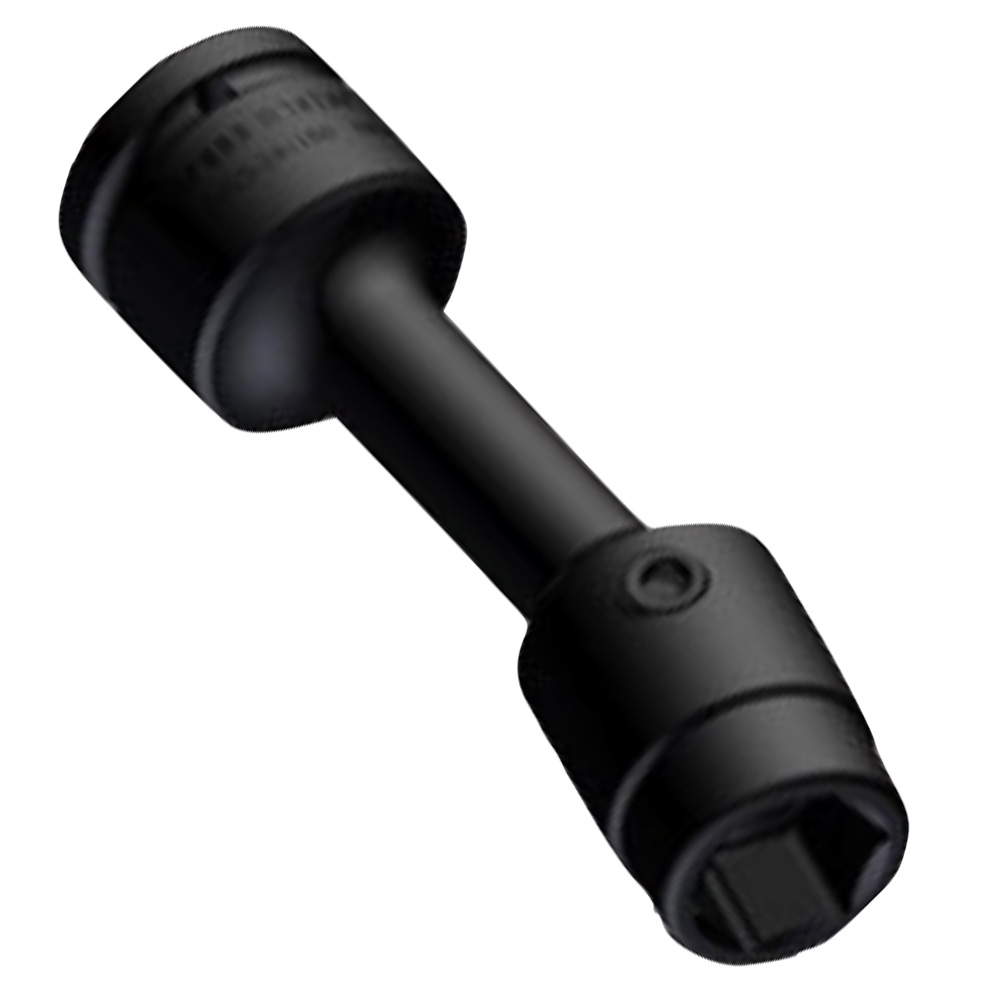

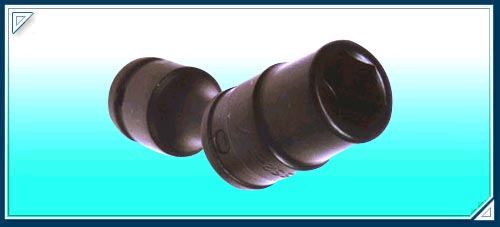

Swival Joints/Sockets
|
These sockets have a built in swivel joint for
impact applications. The swivel is a simple coupling device that allows
the thing fastened to turn around freely upon it. It is a flexible
sockets particularly useful for tightening nuts located at different
angular positions. These are available in 3/8" & ½"
square drives from 7 mm to 24 mm across flat & equivalent SAE sizes.
The swivel sockets with built in extension are also available to cover
reach up to 200 mm.
|
|
|
| Part No. |
Nom. Size A/F |
Sockets End Dia |
Drive End Dia |
Broach Depth |
Bolt Clearance Depth |
Approx OAL |
| SIS2-10 |
10 |
18.0 |
25 |
10.5 |
16 |
70 |
| SIS2-11 |
11 |
19.2 |
25 |
10.5 |
16 |
70 |
| SIS2-12 |
12 |
20.5 |
25 |
12.5 |
17 |
71 |
| SIS2-13 |
13 |
21.7 |
25 |
12.5 |
18 |
72 |
| SIS2-14 |
14 |
23.0 |
25 |
15.0 |
20 |
74 |
| SIS2-15 |
15 |
24.2 |
25 |
15.0 |
20 |
74 |
| SIS2-17 |
17 |
26.7 |
30 |
17.0 |
22 |
78 |
| SIS2-19 |
19 |
29.2 |
30 |
17.0 |
22 |
78 |
| SIS2-21 |
21 |
31.7 |
30 |
17.0 |
22 |
78 |
| SIS2-22 |
22 |
33.0 |
30 |
19.0 |
24 |
80 |
| SIS2-23 |
23 |
34.2 |
30 |
19.0 |
24 |
80 |
| SIS2-24 |
24 |
35.5 |
30 |
19.0 |
24 |
80 |
