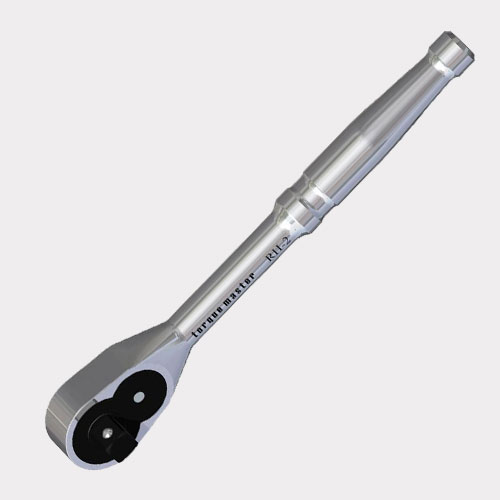

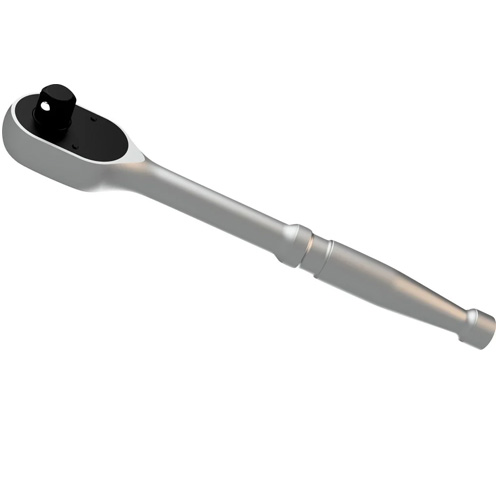

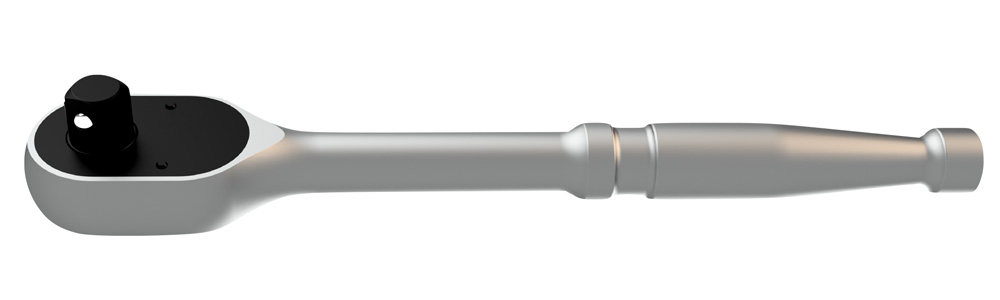

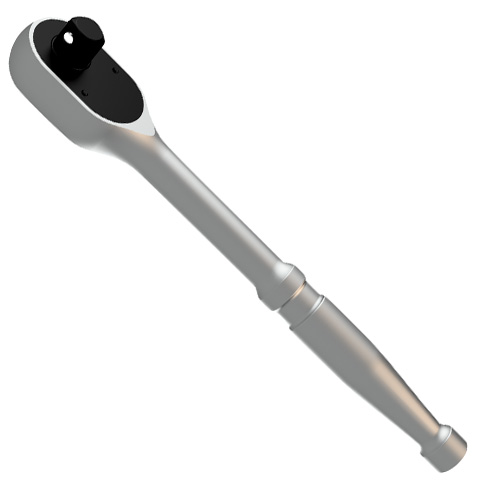

Reversible Ratchets
Torque Master reversible ratchets have a feature of reversing the direction
of operation in situ without detaching the sockets. It has built in
mechanisms for both right and left operation. The ratchets have replaceable
gear-pawl assembly and ratchet repair kit are available as spares. It is
available in ¼" . 3/8", ½" , ¾" and 1"
square drives.
| Part No. |
Sq. Dr. |
Head Width
|
Head Depth
|
Approx OAL
|
| RH1 |
3/8" |
48.0 |
13 |
180 |
| RH2 |
1/2" |
48.0 |
16 |
260 |
| RH3 |
3/4" |
64.0 |
29 |
605 |
| RH4 |
1.0" |
80.0 |
37 |
885 |

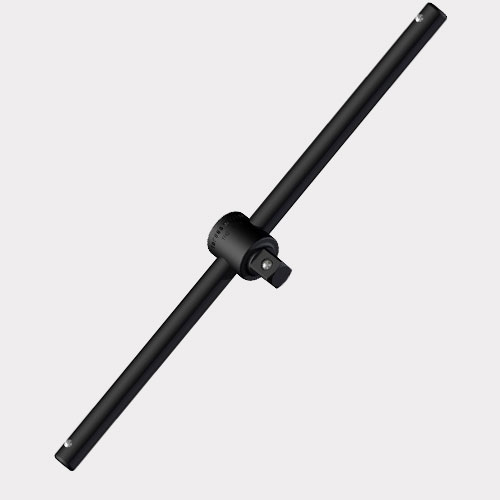

Sliding T Handles
Sliding T Handles are used for driving of manually operated sockets. It has
a large leverage handle which alloys application of force comfortably.
Further final tightening can be done with both hands. The sliding T-Head is
provided with a ball to arrest movement of handle at any desired position. ¼"
sq to 2 ½ sq drive.
| Part No. |
Sq. Dr. |
Head Width
|
Head Depth
|
Approx OAL
|
| TH0 |
1/4" |
14.0 |
23 |
125 |
| TH1 |
3/8" |
20.0 |
32 |
250 |
| TH2 |
1/2" |
26.0 |
44 |
300 |
| TH3 |
3/4" |
41.0 |
65 |
500 |
| TH4 |
1.0" |
48.0 |
78 |
750 |
| TH5 |
1 1/2" |
74.0 |
114 |
925 |

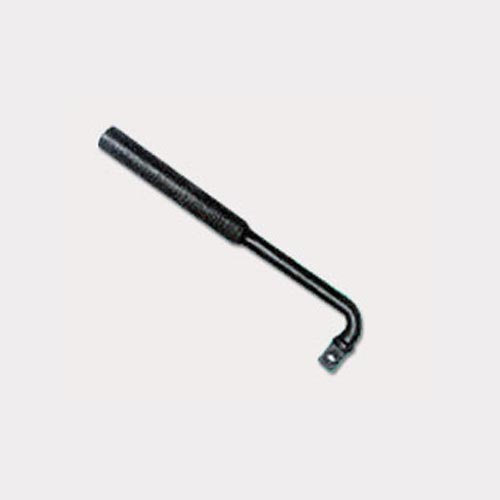

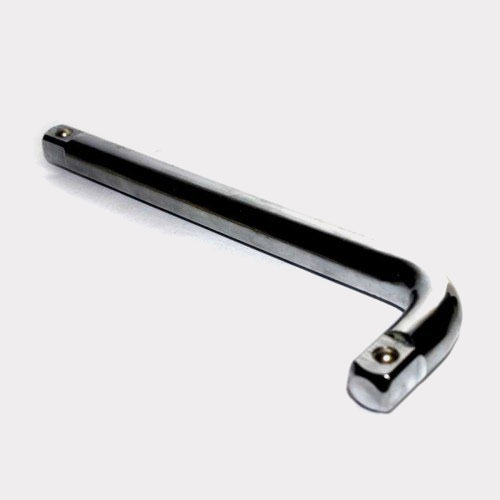

Angle Handles
Used for driving manually operated sockets for working in restricted
places. Manufactured in 3/8" (10mm), ½" (12.5mm) & ¾"
(20mm) square drive.
| Part No. |
Sq. Dr. |
Shank Dia
|
Approx OAL
|
| AH1 |
3/8" |
8.0 |
150 |
| AH2 |
1/2" |
12.7 |
165 |
| AH3 |
3/4" |
24.0 |
300 |

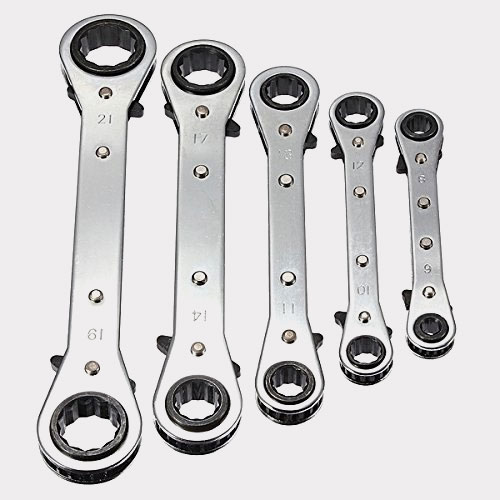

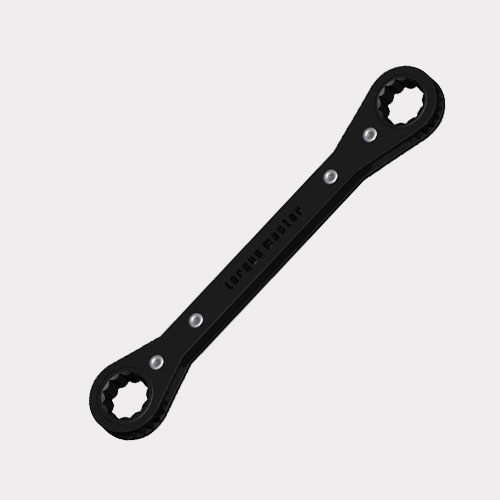

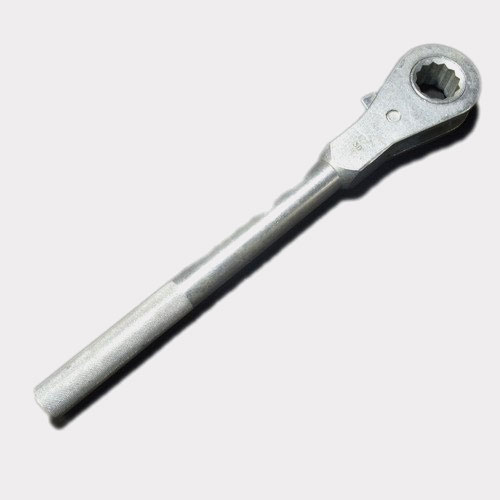

Ratcheting Spanners
Ratcheting spanners with double hex broaching are ideal for faster opening
and loosening of the nuts and bolts. The tool has ratcheting mechanism which
helps operator to complete his job comfortably without any fatigue. While
operating, ratcheting spanners does not require detaching and resetting on
the job and the operation can be carried out continuously. The tool has
broaching on both hands to cover two different sizes of nuts. The range
covers across flat sizes 8 mm to 24 mm and 5/16" to 15/16".
Ratcheting spanners have wider applications in general engineering industry
and automobile production and servicing.
| Part No. |
A/F 1 |
A/F 2 |
OD A/F 1
|
OD A/F 2
|
Thickness |
Approx OAL
|
| RS-8-9 |
8 mm |
9 mm |
16.5 |
19.5 |
8.2 |
125 |
| RS-10-12 |
10 mm |
12 mm |
22.0 |
24.0 |
8.2 |
140 |
| RS-13-14 |
13 mm |
14 mm |
27.0 |
29.0 |
10.1 |
177 |
| RS-16-18 |
16 mm |
18 mm |
32.0 |
34.0 |
11.7 |
222 |
| RS-17-19 |
17 mm |
19 mm |
32.0 |
34.0 |
11.7 |
222 |
| RS-21-24 |
21 mm |
24 mm |
38.5 |
40.0 |
11.7 |
248 |
| RS-22-24 |
22 mm |
24 mm |
38.5 |
40.0 |
11.7 |
248 |
