Torque Wrenches
Torque Master Torque Wrenches are used
in various operations where proper torquing of nuts, bolts and other
fasteners is critical.

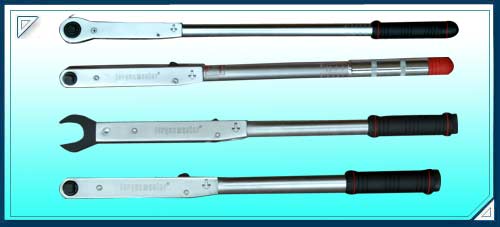

Torque Master Torque Wrenches are of four types.

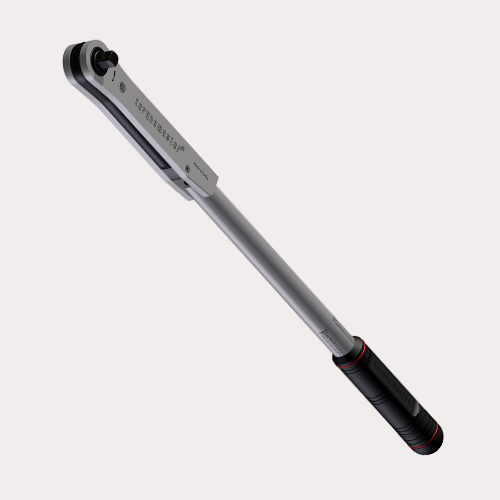

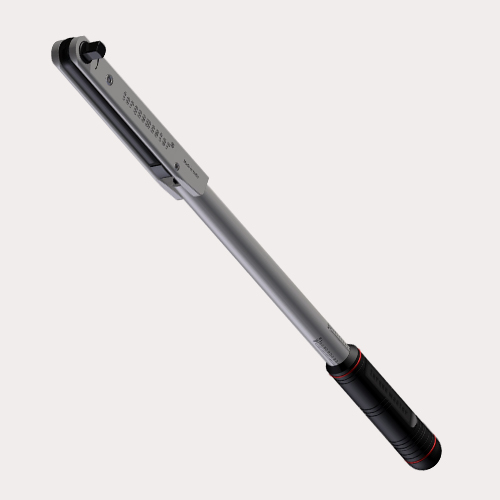

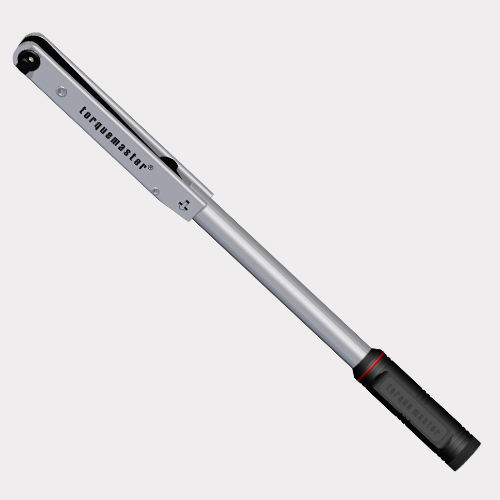

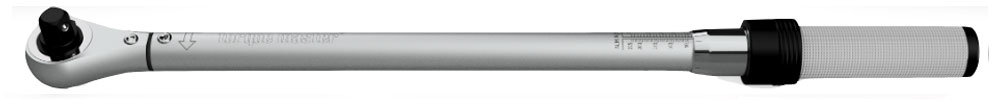

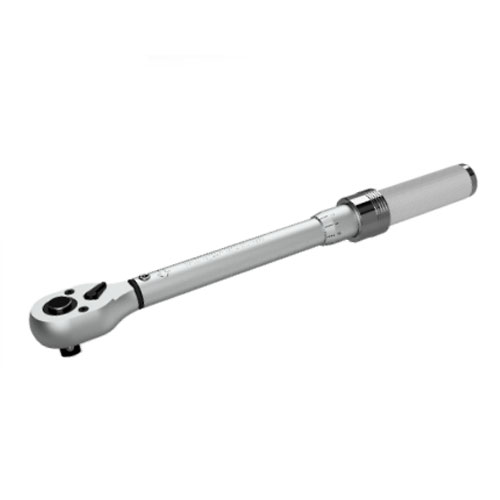

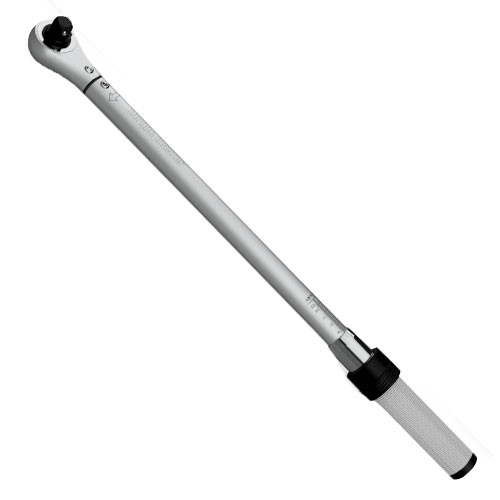

- Standard Model: These Torque Wrenches are available to cover a
torque range from 2Lb Ft. to 2000 Lb Ft./ 0.3 Kg.Mts. to 275 Kg.Mts.
and 3 NM to 2700NM in 12 different Models with Square Drive 3/8"
to 1".

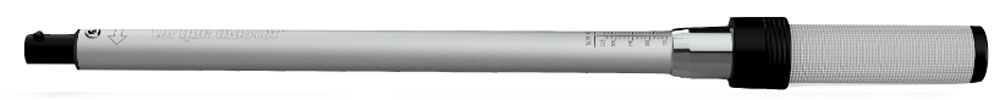

- Production Torque Wrenches: These Torque Industrial Wrenches are
pre-set with one particular torque for repetitive production
applications. the advantages of this type torque wrench is to
prevent the tampering of torque setting during assembly and to save
considerable time.

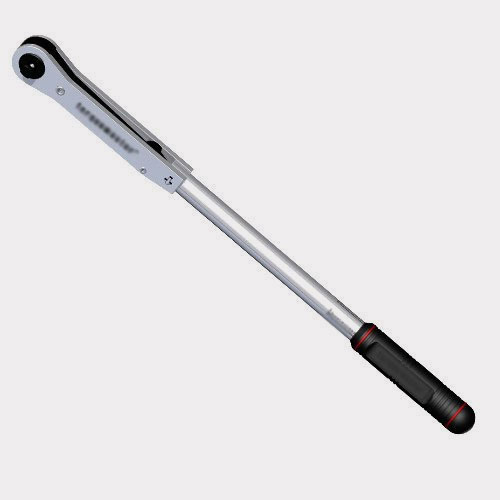

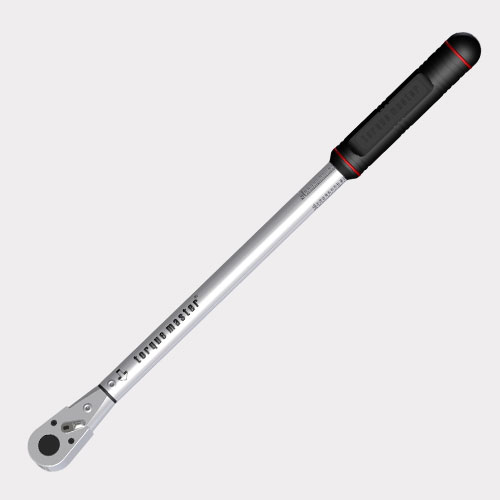

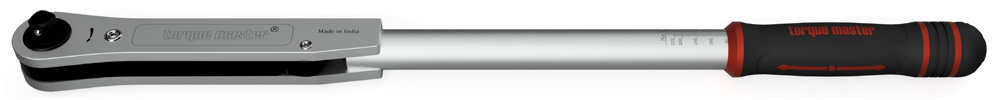

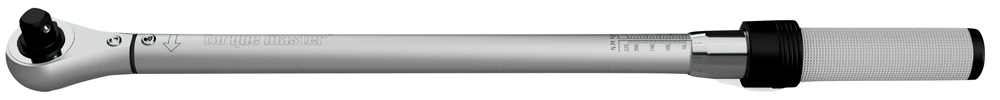

- Ratchet Head Model: This Torque Industrial Wrench has a built in
ratchet mechanism for working in confined area. These torque
wrenches are also available to cover a torque range from 2lb Ft. to
2000 Lb Ft./ 0.3 Kg.Mts. to 275 Kg.Mts. and 3 NM to 2700NM in 12
different Models with Square Drive 3/8" to 1".

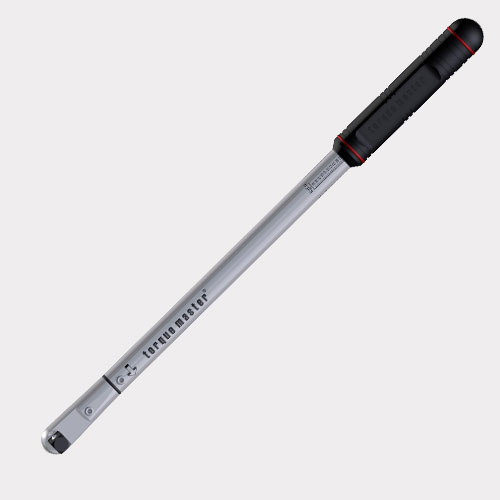

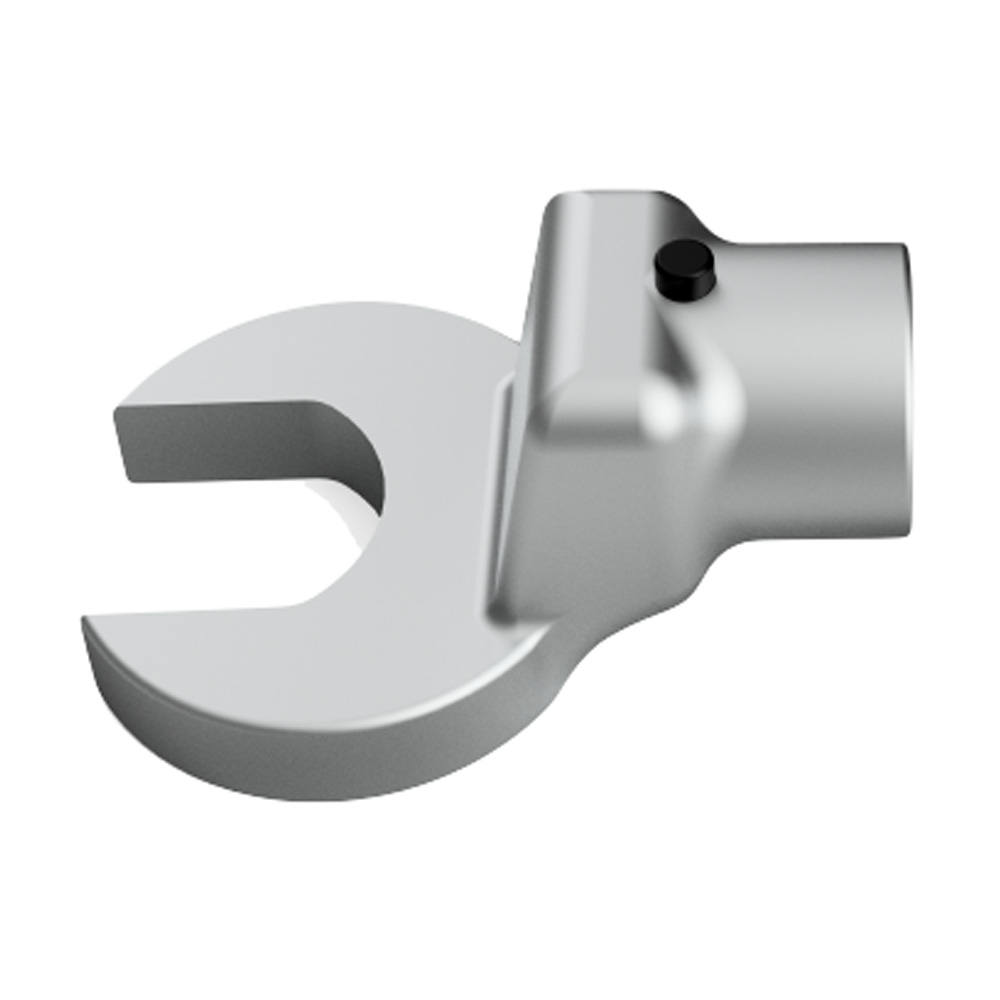

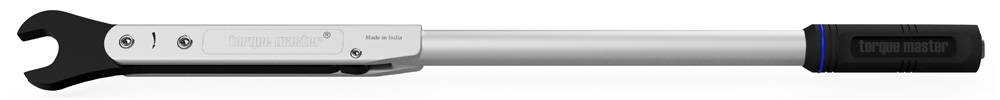

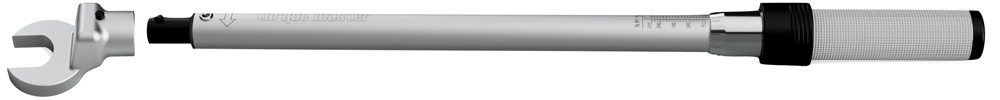

- Open Jaw Fixed Type Torque Wrenches: This is a type of torque
wrench fitted with an open jaw adaptor and set a pre-determined
torque. Places where vertical clearance is restricted to permit the
use of an industrial sockets and a torque wrench, this torque wrench
is suitable for torquing nuts. These are available to cover across
flat sizes from 10mm to 46mm with torque preset to one value as per
requirement.
All Torque Master Torque Wrenches are calibrated on mechanical
torque tester to an accuracy of +/_ 3% as laid down in IS 7145-1973;
The torque tester is calibrated by Force proving instrument and
force proving instrument is certified by n p l new delhi.
|

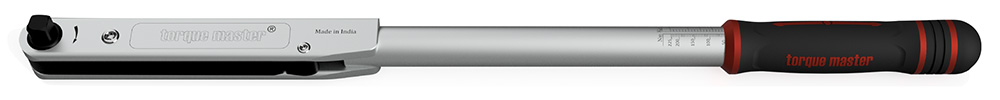

Specification of Standard Click Type Torque Wrench
| Model No. |
TORQUE RANGE |
Square Drive Inch |
Oal at Min Capacity mm |
Head Width mm |
Head Depth (with Bit) mm |
Weight Appx, (Kgs) |
| Lb. Ft. |
N,M. |
Kg. Mts. |
| Range |
LC |
Range |
LC |
Range |
LC |
| TM 10 |
2-10 |
.5 |
3-14 |
.5 |
.3-1.4 |
.1 |
3/8 |
312 |
25 |
33 |
0.600 |
| TM 25 |
5-25 |
1 |
5-35 |
2 |
.5-3.5 |
.2 |
3/8 |
345 |
25 |
33 |
0.700 |
| TM 50 |
10-50 |
2 |
14-68 |
2 |
1-7 |
.2 |
1/2 |
480 |
30 |
45 |
1.100 |
| TM 100 |
20-100 |
2 |
25-135 |
5 |
3-14 |
.5 |
1/2 |
600 |
32 |
55 |
2.250 |
| TM 160 |
40-160 |
5 |
50-220 |
5 |
5-23 |
1 |
1/2 |
620 |
32 |
55 |
2.450 |
| TM 250 |
50-250 |
5 |
70-340 |
10 |
7-35 |
1 |
1/2 |
825 |
32 |
55 |
3.100 |
| TM 400 |
100-400 |
10 |
135-540 |
15 |
14-56 |
1 |
3/4 |
1030 |
48 |
65 |
6.610 |
| TM 500 |
100-500 |
10 |
135-675 |
15 |
14-70 |
2 |
3/4 |
1075 |
48 |
65 |
7.60 |
| TM 750 |
350-750 |
20 |
475-1015 |
20 |
49-105 |
2 |
3/4 |
1370 |
56 |
75 |
14.00 |
| TM 750S |
350-750 |
20 |
475-1015 |
20 |
49-105 |
2 |
1 |
1370 |
56 |
85 |
15.00 |
| TM 1000 |
400-1000 |
20 |
540-1380 |
40 |
55-140 |
5 |
1 |
1410 |
70 |
85 |
17.00 |
| TM 1400 |
750-1400 |
25 |
1000-1900 |
50 |
105-195 |
5 |
1 |
1550 |
70 |
85 |
20.00 |
| TM 2000 |
1000-2000 |
50 |
1350-2700 |
50 |
135-275 |
5 |
1 |
1815 |
70 |
85 |
30.00 |

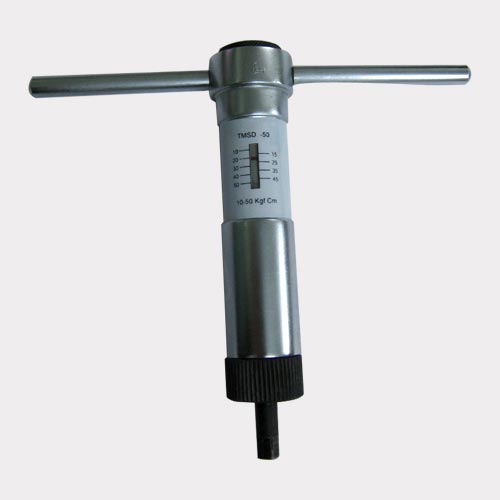

Torque Screw Driver
| MODEL NO. |
TORQUE
CAPACITY |
SQUIRE
DRIVE |
WEIGHT |
| KGF CM |
NM |
LBF IN |
| RANGE |
LC |
RANGE |
LC |
RANGE |
LC |
| TMSD 15 |
1-15 |
.5 |
.1-15 |
.20 |
1-15 |
2 |
1/4" |
.600 KG |
| TMSD 50 |
10-50 |
5 |
1-15 |
.50 |
10-50 |
5 |
1/4" |
.350 KG |

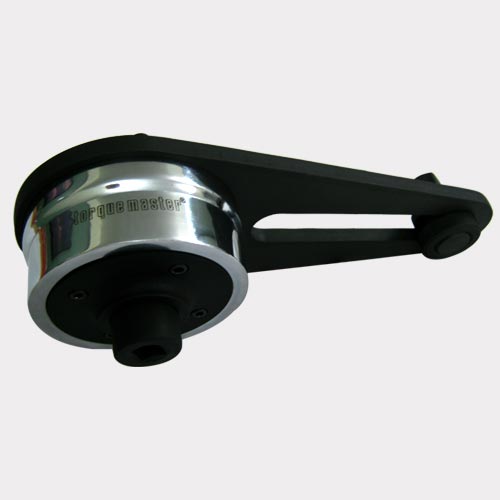

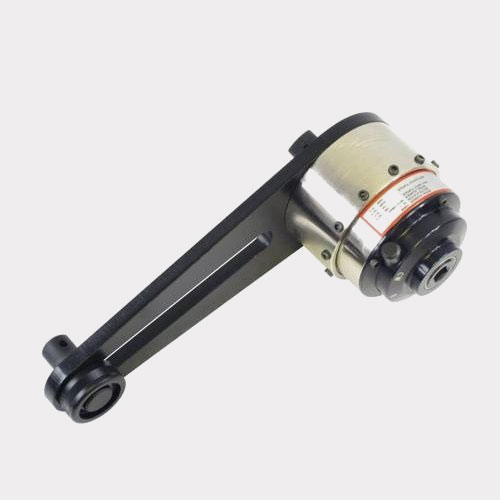

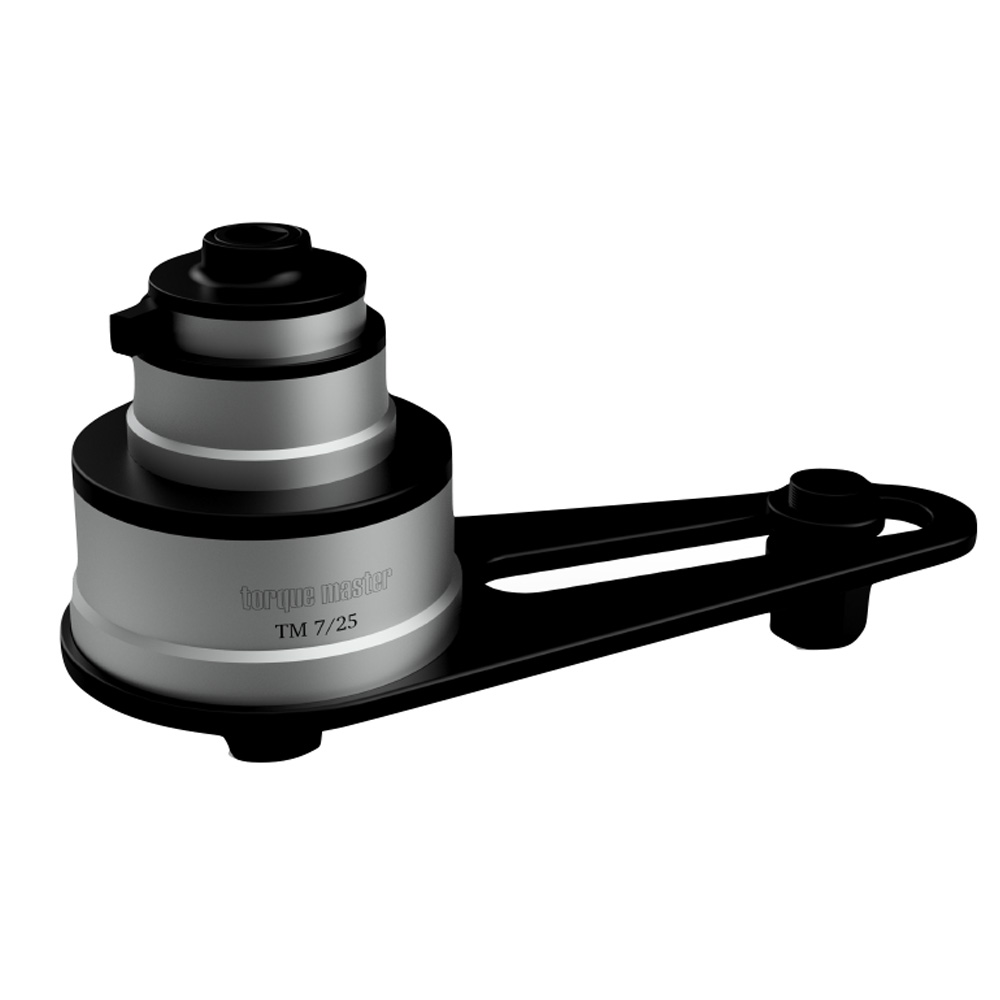

Torque Multipliers
| MODEL NO. |
TORQUE
CAPACIITY |
FACTOR |
FEMALE
INPUT SQ. IN. |
MALEOUT
PUT SQ. IN. |
RECOMMENDED
TORQUE WRENCH |
| PLATE TYPE |
HANDLE TYPE |
LBFT |
KGM |
NM |
| TM-1 |
TMH-1 |
1250 |
170 |
1700 |
5 |
1/2 |
3/4 |
TM 250R |
| TM-2 |
TMH-2 |
1250 |
170 |
1700 |
5 |
1/2 |
1 |
TM 250R |
| TM-2/25 |
TMH-2/25 |
1250 |
170 |
1700 |
25 |
1/2 |
1 |
TM 100R |
| TM-5 |
TMH-5 |
2000 |
275 |
2750 |
5 |
3/4 |
1 |
TM 400R |
| TM-5/25 |
TM-5/25 |
2000 |
275 |
2750 |
25 |
1/2 |
1 |
TM 100R |
| TM-6 |
|
2500 |
345 |
3450 |
5 |
3/4 |
1.1/2 |
TM 500R |
| TM-6/25 |
|
2500 |
345 |
3450 |
25 |
1/2 |
1.1/2 |
TM 100R |
| TM-7 |
|
4500 |
622 |
6220 |
5 |
3/4 |
1.1/2 |
TM 400R |
| TM-7/25 |
|
4500 |
622 |
6220 |
25 |
1/2 |
1.1/2 |
TM 250R |
| TM-7/25 SD |
|
4500 |
622 |
6220 |
25 |
1/2 |
1.1/2 |
TM 250R |
| TM-7/125 |
|
4500 |
622 |
6220 |
125 |
1/2 |
1.1/2 |
TM 50R |
| TM-7/125 SD |
|
4500 |
622 |
6220 |
125 |
1/2 |
1.1/2 |
TM 50R |
| TM-9/25 |
|
7000 |
968 |
9680 |
25 |
3/4 |
1.1/2 |
TM 400R |
| TM-9/125 |
|
7000 |
968 |
9680 |
125 |
1/2 |
1.1/2 |
TM 100R |
| TM-11/25 |
|
1250 |
1734 |
17340 |
25 |
3/4 |
2.1/2 |
TM 500R |
| TM-11/125 |
|
1250 |
1734 |
17340 |
125 |
1/2 |
2.1/2 |
TM 160R |
| TM-13/125 |
|
35000 |
4845 |
48450 |
125 |
3/4 |
2.1/2 |
TM 400R |
