Universal Joints

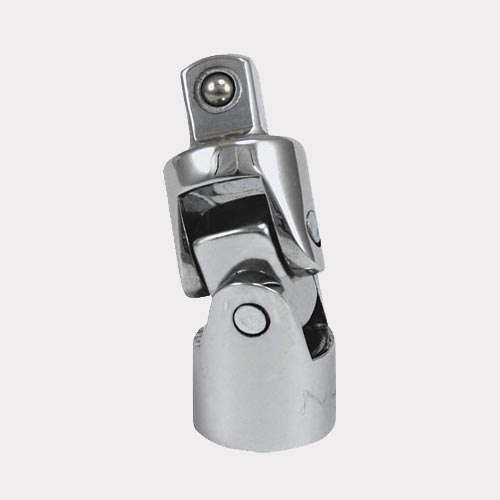

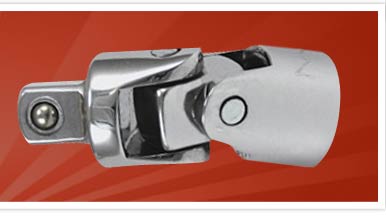

Universal joint is a coupler interposed between double hex
sockets and driving tool. Universal joint is useful for tightening nuts
located at difficult/angular positions. Industrial universal joints are
available from ¼" to 1" square drives.
| Part No. |
Sq. Dr. |
Head Dia |
Approx
OAL |
| UJ0 |
1/4" |
14.0 |
40 |
| UJ1 |
3/8" |
20.0 |
50 |
| UJ2 |
1/2" |
26.0 |
78 |
| UJ3 |
3/4" |
43.0 |
110 |
| UJ4 |
1" |
63.0 |
158 |

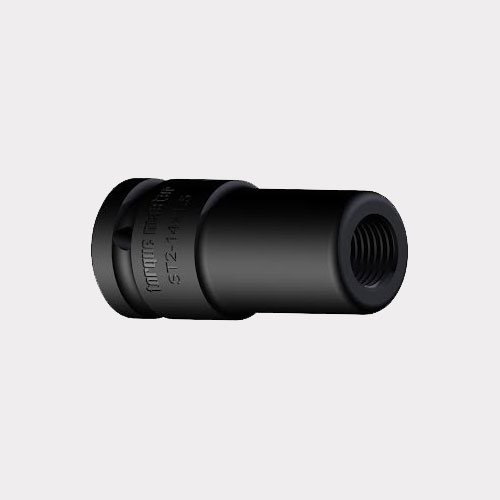

Stud Tighteners
The tool has been developed for speedier tightening of
threaded studs with the help of impact wrench. It is ideal for use in
assembly and maintenance of engines. The range covers stud diameters M6 to
M36 (Metric), ¼" to 1 ½" UNF (SAE/British) in 3/8"
(10mm) to 1" (25mm) square drives. The tool has cross-hole and groove
for locking pin and ring.
3/8" Sq. Drive Stud Tightener (Metric)
| Part No. |
Stud
Size & Pitch |
Stud
End. Dia |
Drive
End Dia |
Thread
Length |
Approx
OAL |
| ST 1-6 |
M 6x1 |
11.4 |
19.0 |
10 |
35 |
| ST 1-7 |
M 7x1 |
12.7 |
19.0 |
10 |
35 |
| ST 1-8 |
M 8x1 |
13.9 |
19.0 |
12 |
37 |
| ST 1-8/1 |
M 8x1.25 |
13.9 |
19.0 |
12 |
37 |
| ST 1-10 |
M 10x1.5 |
16.4 |
19.0 |
14 |
40 |
| ST 1-10/1.25 |
M 10x1.25 |
16.4 |
19.0 |
14 |
40 |
3/4" Sq. Drive Stud Tightener (Metric)
| Part No. |
Stud Size &
Pitch |
Stud End. Dia |
Drive End Dia |
Thread Length |
Approx OAL |
| ST 3-16 |
M 16x2 |
30.5 |
43.0 |
20 |
65 |
| ST 3-20 |
M 20x2.5 |
35.0 |
43.0 |
24 |
75 |
| ST 3-24 |
M 24x3 |
40.5 |
45.0 |
27 |
80 |

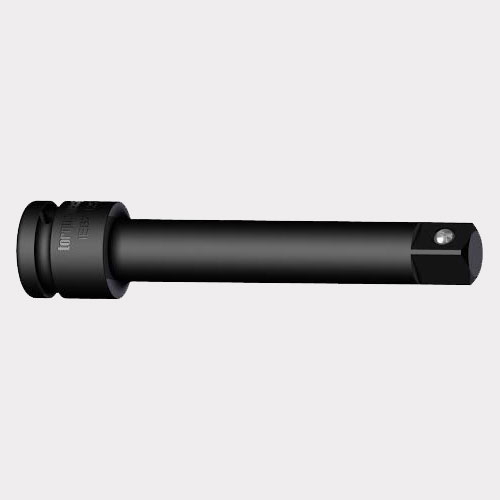

Extension Bars
The tool has been developed for speedier tightening of
threaded studs with the help of impact wrench. It is ideal for use in
assembly and maintenance of engines. The range covers stud diameters M6 to
M36 (Metric), ¼" to 1 ½" UNF (SAE/British) in 3/8"
(10mm) to 1" (25mm) square drives. The tool has cross-hole and groove
for locking pin and ring.
| Part No. |
Sq.
Drive |
Head Dia |
Shank
Dia |
Approx
OAL |
| EB0-55 |
1/4" |
13.0 |
8.0 |
150 |
| EB0-100 |
1/4" |
13.0 |
8.0 |
100 |
| EB0-150 |
1/4" |
13.0 |
8.0 |
150 |
| EB1-75 |
3/8" |
19.0 |
12.6 |
300 |
| EB1-150 |
3/8" |
19.0 |
12.6 |
150 |
| EB1-300 |
3/8" |
19.0 |
12.6 |
300 |
| EB2-75 |
1/2" |
24.0 |
16.5 |
250 |
| EB2-125 |
1/2" |
24.0 |
16.5 |
125 |
| EB2-250 |
1/2" |
24.0 |
16.5 |
250 |
| EB3-210 |
3/4" |
43.0 |
24.0 |
430 |
| EB3-430 |
3/4" |
43.0 |
24.0 |
430 |
| EB4-200 |
1" |
54.0 |
34.0 |
400 |
| EB4-400 |
1" |
54.0 |
34.0 |
400 |

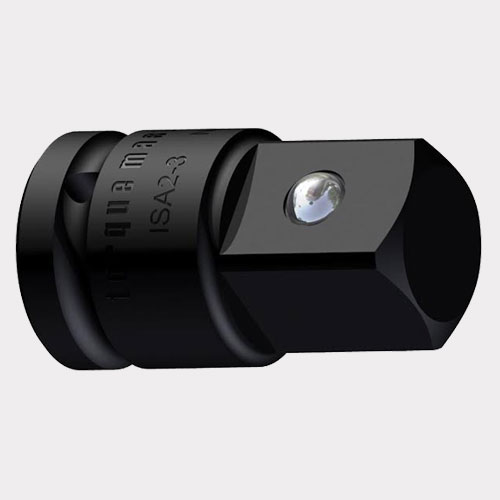

Square Drive Adaptors
Square Drive Adaptors are used as a convertor to permit
use of sockets and driving tools to different drive sizes. These are
available in various combinations, ¼" Fx3/8"M, 3/8"Fx1/2"M,
½"Fx3/4"M, 1"Fx3/4"M, 1"Fx1 ½"M and
vice versa. These are available for manual as well as impact use. For impact
use, provision for locking ring and pin is there.
| Part No. |
Sq. Dr.
Female |
Sq. Dr.
Male |
Drive
End Dia |
Approx
OAL |
| ISAO-1 |
1/4" |
3/8" |
14.0 |
27 |
| ISAO-0 |
3/8" |
1/4" |
20.0 |
32 |
| ISAO-2 |
3/8" |
1/2" |
22.0 |
38 |
| ISAO-1 |
1/2" |
3/8" |
26.0 |
38 |
| ISAO-2 |
3/4" |
1/2" |
48.0 |
55 |
| ISAO-3 |
1/2" |
3/4" |
28.0 |
47 |
| ISAO-4 |
3/4" |
1" |
48.0 |
65 |
| ISAO-3 |
1" |
3/4" |
54.0 |
70 |
| ISAO-5 |
1" |
1 1/2" |
58.0 |
90 |
| ISAO-4 |
1 1/2" |
1" |
86.0 |
110 |
| ISAO-6 |
1 1/2" |
2 1/2" |
86.0 |
135 |
| ISAO-5 |
2 1/2" |
1 1/2" |
127.0 |
165 |
