Impact Sockets




	Ask for Price
	Zoom

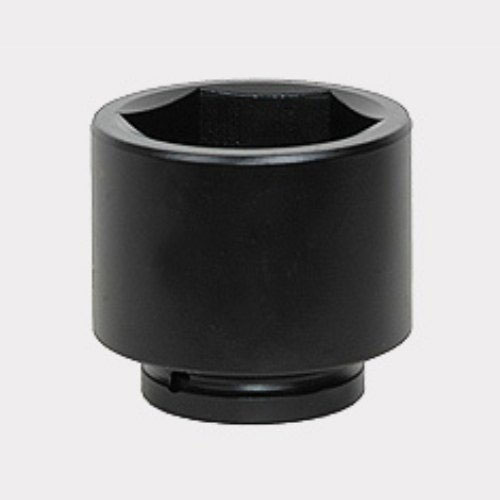

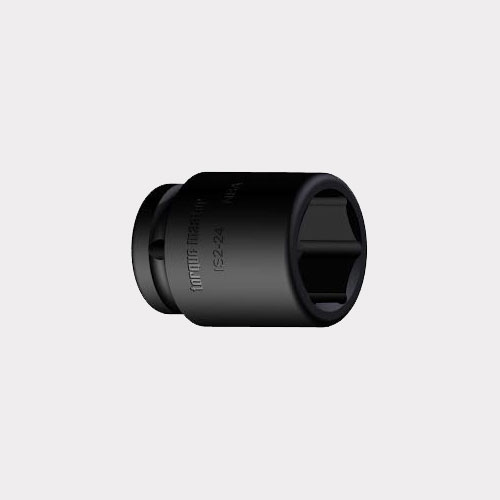

Features of industrial impact sockets are greater wall thickness for resisting impact loads, special heat treatment for toughness and strength, a black industrial finish and the cross hole retaining feature. Impact sockets are available in 1/4 " to 2 1/ 2" square drives from 6mm to 160mm across flat of Nut/Bolt. (1/4" to 6 1/4" SAE). Caution : These sockets are for use with impact wrenches. Eye protection should always be used while using impact equipment.

¼ " Sq. Drive Single Hex Impact Sockets (Metric)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Approx. OAL
ISO-6	6	10.3	14.0	25
ISO-7	7	11.6	14.0	25
ISO-8	8	12.8	14.0	25
ISO-9	9	14.1	16.0	25
ISO-10	10	15.3	16.0	25
ISO-11	11	16.6	16.0	25
ISO-12	12	17.8	16.0	25
ISO-13	13	19.1	16.0	25
ISO-14	14	20.3	16.0	25

3/8" Sq. Drive Single Hex Impact Sockets (Metric)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Approx. OAL
ISI-8	8	14.0	20.0	32
ISI-10	10	16.6	20.0	32
ISI-11	11	17.8	20.0	32
ISI-12	12	19.1	20.0	32
ISI-13	13	20.3	20.0	32
ISI-14	14	21.6	20.0	32
ISI-15	15	22.8	20.0	32
ISI-17	17	25.3	22.0	32
ISI-18	18	26.6	22.0	32
ISI-19	19	27.8	25.0	32

½" Sq. Drive Single Hex Impact Sockets (METRIC)

Part No	Nom. Size A/F	Sockets End Dia	Drive Approx. End Dia	OAL
IS2-10	10	17.8	25.0	40
IS2-11	11	19.0	25.0	40
IS2-12	12	20.3	25.0	40
IS2-13	13	21.7	26.0	40
IS2-14	14	23.0	26.0	40
1S2-15	15	24.2	26.0	40
IS2-17	17	26.7	26.0	40
IS2-18	18	27.9	28.0	40
IS2-19	19	29.2	28.0	40
IS2-21	21	31.7	28.0	40
IS2-22	22	33.0	30.0	40
IS2-23	23	34.2	30.0	40
IS2-24	24	35.5	30.0	45
IS2-27	27	39.2	33.0	50
IS2-30	30	43.0	33.0	50
ISI-32	32	45.5	38.0	50

3/4" Sq. Drive Single Hex Impact Sockets (METRIC)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Approx. OAL
IS3-17	17	31.7	43	44
IS3-19	19	34.0	43	44
IS3-22	22	38.0	43	48
IS3-24	24	40.5	43	48
IS3-27	27	43.5	43	50
IS3-30	30	48.0	45	50
IS3-32	32	50.5	45	52
IS3-36	36	54.5	45	54
IS3-38	38	58.0	48	57
IS3-41	41	61.8	54	57
IS3-46	46	68.0	54	60
IS3-50	50	73.0	54	63
IS3-55	55	79.3	58	69
IS3-60	60	85.5	58	76

1" Sq. Drive Single Hex Impact Sockets (METRIC)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Approx. OAL
IS4-19	19	38.0	54	54
IS4-22	22	41.7	54	54
IS4-24	24	44.2	54	54
IS4-27	27	48.0	54	56
IS4-30	30	51.7	54	56
IS4-32	32	54.0	54	58
IS4-36	36	59.0	58	60
IS4-38	38	61.5	58	62
IS4-41	41	65.3	58	62
IS4-46	46	71.5	68	67
IS4-50	50	76.5	68	68
IS4-55	55	82.5	68	73
IS4-60	60	88.7	68	80
IS4-65	65	95.3	75	83
IS4-70	70	101.3	75	86
IS4-75	75	107.8	75	95
IS4-80	80	114.0	75	100
IS4-85	85	120.3	75	100

11/2" Sq. Drive Single Hex Impact Sockets (METRIC)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Approx. OAL
IS5-36	36	64.7	86	80
IS5-38	38	66.6	86	80
IS5-41	41	70.4	86	80
IS5-46	46	76.6	86	86
IS5-50	50	81.6	86	86
IS5-55	55	87.6	86	95
IS5-60	60	94.0	86	100
IS5-65	65	100.0	86	100
IS5-70	70	106.0	86	100
IS5-75	75	112.0	86	110
IS5-80	80	118.0	86	120
IS5-85	85	124.0	86	125
IS5-90	90	130.0	86	125
IS5-95	95	136.0	127	130
IS5-100	100	142.0	127	130
IS5-105	105	148.0	127	135
IS5-110	110	154.0	127	140
IS5-115	115	160.0	127	140
IS5-120	120	166.0	127	145

21/2" Sq. Drive Single Hex Impact Sockets (METRIC)

Part No	Nom Size A/F	Sockets End Dia	Drive End Dia	Broach Depth	Bolt Clearance Depth	Approx. OAL
IS6-60	60	106.0	127	50	75	140
IS6-65	65	112.0	127	50	75	140
IS6-70	70	118.0	127	52	80	145
IS6-75	75	124.6	127	52	80	145
IS6-80	80	130.8	127	52	80	145
IS6-85	85	137.7	127	54	80	145
IS6-90	90	143.1	127	54	95	160
IS6-95	95	148.1	127	54	95	160
IS6-100	100	155.3	127	54	95	160
IS6-105	105	161.1	127	54	95	160
IS6-110	110	167.0	127	60	96	170
IS6-115	115	173.6	127	65	105	170
IS6-120	120	186.0	127	65	105	170
IS6-130	130	192.5	152	70	125	190
IS6-135	135	198.7	152	70	125	190
IS6-145	145	211.3	152	75	135	195
IS6-150	150	271.6	152	75	135	200
IS6-155	155	224.0	152	75	135	200
IS6-160	160	230.0	152	75	135	200
